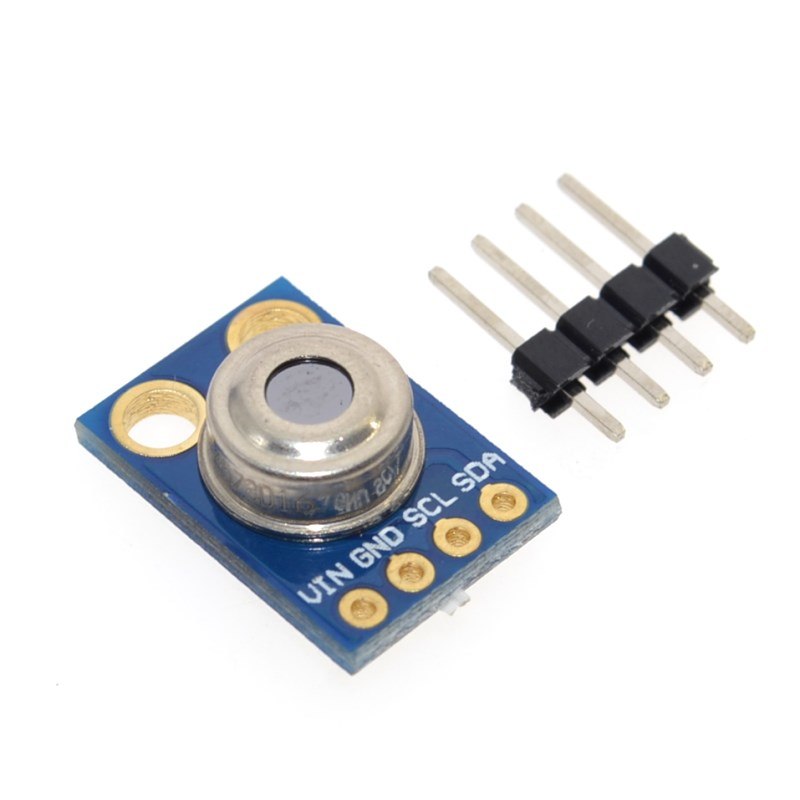

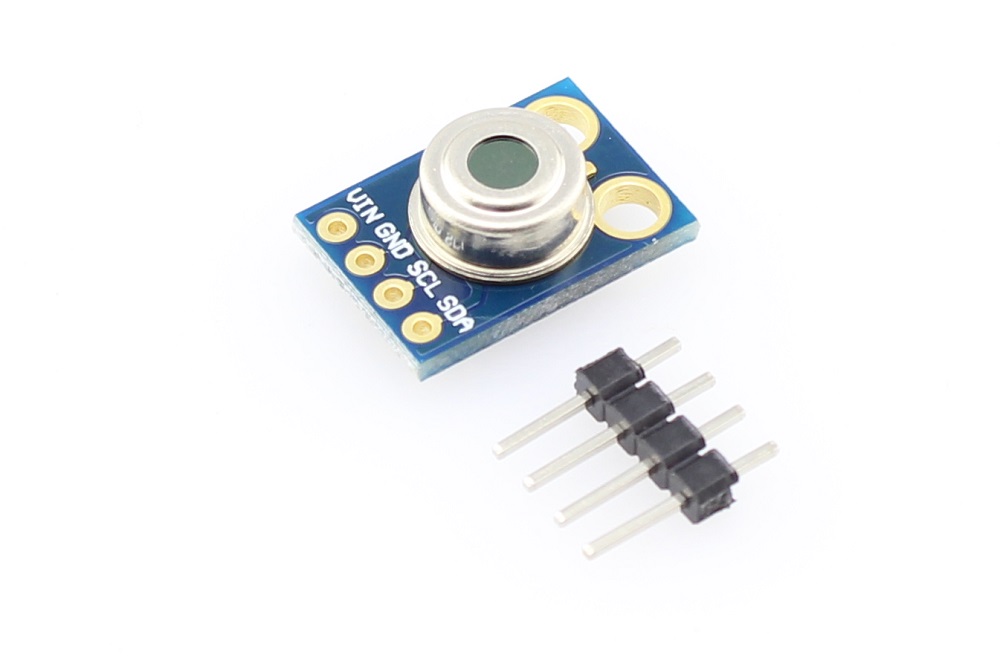

MLX90614 GY-906 MLX90614ESF Infrared Temperature Sensor Module เซ็นเซอร์อุณหภูมิแบบไร้สัมผัส

This is a MELEXIS MLX90614ESF-BAA-000-TU-ND non-contact infrared thermometer for use with Arduino, or any microcontroller that can communicate with it through it's I2C interface.
Features

•     Small size, low cost
•     Mounted on a breakout board with two types of pins
•     10k Pull up resistors for the I2C interface with optional solder jumpers
•     Easy to integrate
•     Factory calibrated in wide temperature range:-40…+125°C for sensor temperature and -70…+380°C for object temperature.
•     High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibration
•     Measurement resolution of 0.02°C
•     Single and dual zone versions
•     SMBus compatible digital interface
•     Customizable PWM output for continuousreading
•     Simple adaptation for 8-16V applications
•     Sleep mode for reduced power consumption
•     Different package options for applications andmeasurements versatility
•     Automotive grade

Applications Examples

•     High precision non-contact temperature measurements
•     Thermal Comfort sensor for Mobile AirConditioning control system
•     Temperature sensing element for residential,commercial and industrial building airconditioning
•     Windshield defogging
•     Automotive blind angle detection
•     Industrial temperature control of moving parts
•     Temperature control in printers and copiers
•     Home appliances with temperature control
•     Healthcare
•     Livestock monitoring
•     Movement detection
•     Multiple zone temperature control – up to 127sensors can be read via common 2 wires
•     Thermal relay / alert
•     Body temperature measurement
