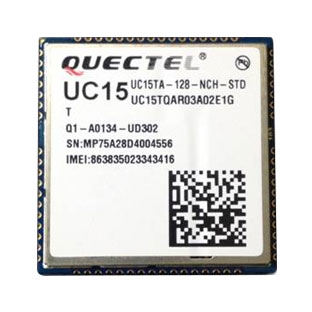

3G Module (UC15-T) UMTS/HSDPA and GSM/GPRS/EDGE Module

Quectel UC15T เป็นโมดูล GSM/UMTS/HSDPA ที่มีความเร็วในการรับส่งข้อมูลสูงสุด download 3.6 Mbps และ upload 384 Kbps ตัว  UC15T นั้นได้รับการออกแบบให้เหมาะกับการใช้งานกับเทคโนโลยี UMTS/HSDPA และ GSM/GPRS/EDGE



UC15 is a cost effective UMTS/HSDPA module featuring a maximum data rate of 3.6Mbps downlink and 384Kbps uplink. Designed to be compatible with Quectel GSM/GPRS M10 module in the compact and unified form factor, it provides a flexible and scalable platform for migrating from GSM/GPRS/EDGE to UMTS/HSDPA. This enables integrators and developers to design their applications once and take advantage of true worldwide coverage and service flexibility afforded by the combination of the two most prevalent cellular technologies worldwide.



Its advanced LCC package allows fully automated manufacturing for high volume applications and copper-surfaced bottom design optimizes heat dissipation. The tiny profile in cost optimized SMT form factor and highly integration level enable integrators and developers to easily design their applications and truly benefit from the module’s small size, low power consumption and mechanical intensity.



A rich set of Internet protocols, industry-standard interfaces (USB/UART/ADC/Status Indicator/PCM ) and abundant functionalities (USB drivers for Windows XP, Windows Vista, Windows 7, Windows 8, Windows CE, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M applications such as automotive, metering, security, CPE and wireless POS.







General specifications:



Frequency Bands                  UMTS: 850/2100MHZ

                                              GSM: 850/900/1800/1900MHZ

HSPA                                     Release 5 (category 6)

EDGE                                      Downlink only

GPRS                                      Multi Slot Class 12

UMTS                                     Release 99/5

GSM                                       Release 99/4

Supply Voltage Range          3.4 ~ 4.3V, 3.8V typ.

Operation Temperature       -40 °C ~ +85 °C

Dimension                             29.0 x 29.0 x 2.5mm

Weight                                  Approx. 4.3g

Control via AT commands    3GPP TS27.007, 27.005 and other enhanced AT Commands
